Construction
Applications
Packaging
Specifications
Construction

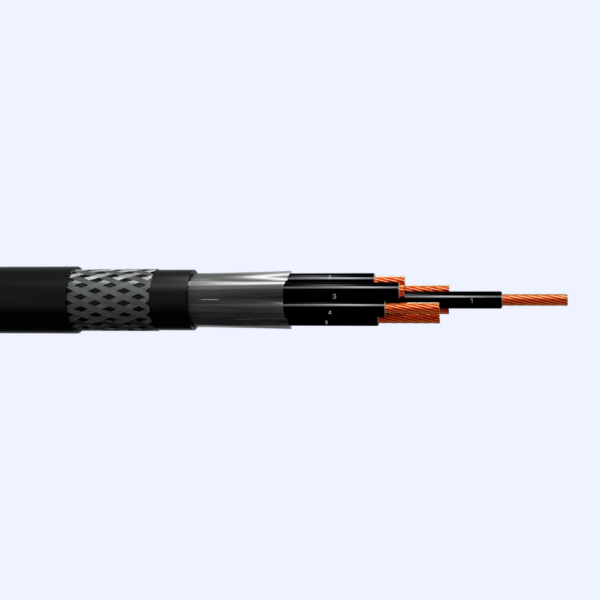

1. Conductor: Bare electrolytic copper conductor, soft temper, flexible stranding.
2. Insulation: Extruded compound based on flame-retardant polyvinyl chloride (PVC).
3. Assembly: The strands (insulated conductors) are twisted together in concentric crowns to form the core of the cable.
4.Separator: Banding with polyester tape, applied in an overlapping helix, over the meeting of the strands.
5. Inner Cover: Extruded layer of flame-retardant polyvinyl chloride (PVC) compound.
6. Shielding: Tinned copper wire braid.
7.Cover: Extruded layer of flame-retardant polyvinyl chloride (PVC) compound in black.
Numbered black veins.
Applications
In control, signaling and drive circuits for industrial equipment. They are suitable for interconnecting electronic instruments such as signal carriers or power supplies in fixed or mobile installations. This type of shielding gives the cable good tensile strength and flexibility.
Packaging
They are usually packed in wooden reels.
Specifications
ABNT NBR-7289 – Control cables with extruded Polyethylene (PE) or Polyvinyl Chloride (PVC) insulation for voltages up to 1 kV.
Cabo de Controle (PVC/PVC) Blindado com Fita de Alumínio Poliéser + Dreno 500V
| SEÇÃO NOMINAL: 0,5 MM² | ||||
|---|---|---|---|---|
| Diâmetro Nominal do Condutor: 0,86 mm | ||||
| Espessura Nominal de Isolação: 0,6 mm | ||||
| Temperatura de Operação: Máxima 70 ºC |
[table id=26 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]
| SEÇÃO NOMINAL: 0,75 MM² | ||||
|---|---|---|---|---|
| Diâmetro Nominal do Condutor: 1,08 mm | ||||
| Espessura Nominal de Isolação: 0,6 mm | ||||
| Temperatura de Operação: Máxima 70 ºC |
[table id=27 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]
| SEÇÃO NOMINAL: 1 MM² | ||||
|---|---|---|---|---|
| Diâmetro Nominal do Condutor: 1,22 mm | ||||
| Espessura Nominal de Isolação: 0,6 mm | ||||
| Temperatura de Operação: Máxima 70 ºC |
[table id=28 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]
