Epronax Slim 105 Coordinated Insulated Medium Voltage Cable (20/35 kV)

The Epronax Slim 105 20/35 kV medium voltage cable is a type of electrical cable used for power transmission in medium voltage systems. It features coordinated insulation, which means it is designed to withstand voltage peaks without failing.

All information

CABO EPRONAX SLIM 105 (20/35 kV) ISOLAÇÃO COORDENADA

ReferênciaCondutor Seção nominal (mm²)Condutor Diâmetro nominal (mm)Isolação Espessura nominal (mm)Isolação Diâmetro nominal (mm)Número de condutoresCobertura Espessura nominal (mm)Cobertura Diâmetro nominal (mm)Peso Total (kg/km)
3710.01.016508,308,225,911,832,11379
3710.03.016508,308,225,933,068,95378
3710.01.017709,607,525,811,832,01543
3710.03.017709,607,525,833,069,45957
3710.01.0189511,37,527,511,933,91837
3710.03.0189511,37,527,533,273,67014
3710.01.01912012,77,528,911,935,32108
3710.03.01912012,77,528,933,376,87988
3710.01.02015013,87,530,011,936,42395
3710.03.02015013,87,530,033,479,89058
3710.01.02118515,56,529,711,936,12644
3710.03.02118515,56,529,733,378,99742
3710.01.02224018,46,532,612,039,23269
3710.03.02224018,46,532,633,685,811970
3710.01.02330020,56,534,712,141,53900
3710.03.02330020,56,534,733,790,514074
3710.01.02440023,36,537,512,244,54757
3710.03.02440023,36,537,533,997,016992
3710.01.02550026,46,540,612,347,85941
3701.03.02550026,46,540,634,210421003

Description



Print information


Certificates

All information

Construction
Applications
Packaging
Specifications
Construction

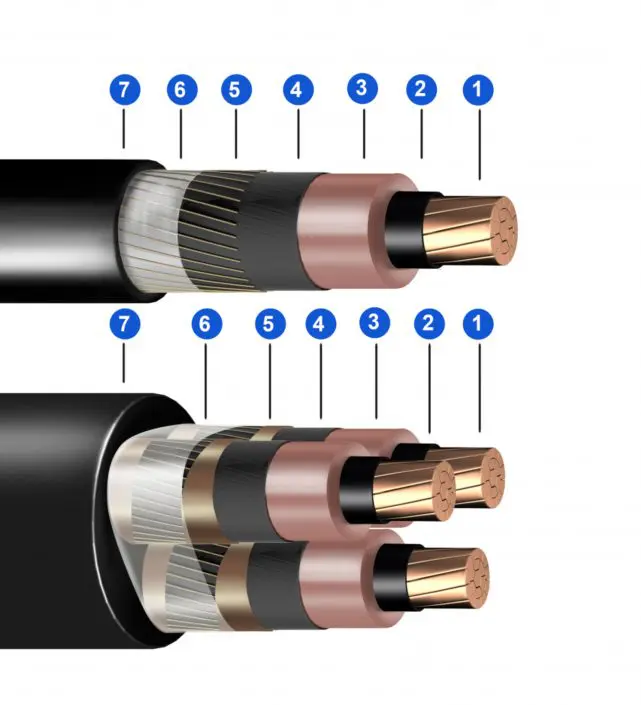

1.Conductor: Bare electrolytic copper, soft temper, compacted circular stranded (Class 2)

2.Conductor shielding: Semiconductor thermosetting compound.

3.Insulation: EPR rubber thermosetting compound 105 °C.

4.Insulation Shielding: Layer of semiconductor thermosetting compound that is easy to remove when cold.

5. Metal Shield: Bare copper wire.

6.Separator: Non-hygroscopic polyester tape, applied in a helix covering 100% of the cable.

7. Cover: PVC ST2 polyvinyl chloride compound.

Cables with 3 conductors, vein identification by means of white, blue and red ribbons.

Applications

The modern technology used in the manufacture of EPRONAX SLIM 105 CABLES provides an excellent technical and very economical alternative for input and/or distribution circuits in residential or industrial buildings, substations, etc. They can be installed outdoors, in conduits, ducts, trays or directly underground.

Packaging

They are usually packed in wooden reels

Specifications

ABNT NBR 7286 Power cables with extruded ethylene-propylene rubber insulation (EPR, HEPR or EPR 105) for voltages from 1 kV to 35 kV – Requirements
