ATOX 1000V Non-Halogenated Control Cable Shielded with Polyester Aluminum Tape + Drain

The ATOX 1000V non-halogenated control cable shielded with polyester aluminum tape + drain is a cable used in industrial electrical installations that require high mechanical resistance and protection against electromagnetic interference.

The cable is made up of bare or tinned electrolytic copper conductors, insulated with a non-halogenated compound that emits low smoke and toxic gases in the event of a fire.

All information

Cabo de Controle Não Halogenado ATOX 1000V Blindado com Fita de Alumínio Poliester + Dreno

SEÇÃO NOMINAL: 1,5 MM²
Diâmetro Nominal do Condutor: 1,49 mm
Espessura Nominal de Isolação: 0,7 mm
Temperatura de Operação: Máxima 90 ºC

[table id=48 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]

SEÇÃO NOMINAL: 2,5 MM²
Diâmetro Nominal do Condutor: 1,93 mm
Espessura Nominal de Isolação: 0,7mm
Temperatura de Operação: Máxima 90 ºC

[table id=49 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]

ReferênciaNúmero de CondutoresEspessura Nominal de Cobertura (mm)Diâmetro Externo Nominal (mm)Peso Líquido Nominal (kg/km)
4554.02.008021,48,8399,2
4554.03.008031,49,29110
4554.04.008041,410,0135
4554.05.008051,410,9160
4554.06.008061,411,7189
4554.07.008071,411,7195
4554.08.008081,412,6221
4554.09.008091,413,5252
4554.10.008101,414,6266
4554.11.008111,414,6283
4554.12.008121,415,0303
4554.13.008131,415,3322
4554.14.008141,415,8345
4554.15.008151,416,6381
4554.16.008161,416,6387
4554.18.008181,417,5433
4554.19.008191,417,5439
4554.20.008201,418,4481
4554.24.008241,420,4544
4554.25.008251,420,4561
4554.30.008301,521,8667
4554.37.008371,523,5796

Description



Print information


Certificates

All information

Construction
Applications
Packaging
Specifications
Construction

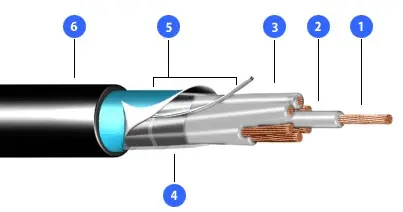

1. Conductor: Bare electrolytic copper, soft temper, flexible stranding.

2.Insulation: Extruded thermosetting compound of ethylene-propylene rubber (HEPR) 90 ºC.

3. Assembly: The veins (insulated conductors) are assembled together in concentric crowns to form the core of the cable.

4.Separator: Banding with polyester tape, applied in an overlapping helix, over the meeting of the strands.

5.Shielding: Aluminum/polyester tape applied helically with the aluminized face in electrical contact with the conductor
0.50 mm² tinned cable drain conductor.

6. Cover: Thermoplastic compound, non-halogenated (SHF1), with low emission of smoke and toxic gases, non-flame retardant (flame retardant) 70 °C.

Numbered black veins.

Applications

ATOX CONTROL CABLES are suitable for electrical installations in buildings where there is a high concentration of people (e.g. airports, tunnels, commercial buildings such as hotels, cinemas, shopping malls, hospitals, residential buildings) and where, in the event of a fire, evacuation is long and difficult. These areas are classified as BD2, BD3 and BD4 by NBR 5410 and NBR 13570.

Packaging

They are usually packed in wooden reels.

Specifications

NBR-13248 – Power and control cables and bare insulated conductors, with extruded insulation and low smoke emission, for voltages up to 1 kV.

Cabo de Controle Não Halogenado ATOX 1000V Blindado com Fita de Alumínio Poliester + Dreno

SEÇÃO NOMINAL: 1,5 MM²
Diâmetro Nominal do Condutor: 1,49 mm
Espessura Nominal de Isolação: 0,7 mm
Temperatura de Operação: Máxima 90 ºC

[table id=48 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]

SEÇÃO NOMINAL: 2,5 MM²
Diâmetro Nominal do Condutor: 1,93 mm
Espessura Nominal de Isolação: 0,7mm
Temperatura de Operação: Máxima 90 ºC

[table id=49 datatables_fixedheader=top datatables_fixedheader_offsettop=230 /]


informações e Tabela


Certificados

ReferênciaNúmero de CondutoresEspessura Nominal de Cobertura (mm)Diâmetro Externo Nominal (mm)Peso Líquido Nominal (kg/km)
4554.02.008021,48,8399,2
4554.03.008031,49,29110
4554.04.008041,410,0135
4554.05.008051,410,9160
4554.06.008061,411,7189
4554.07.008071,411,7195
4554.08.008081,412,6221
4554.09.008091,413,5252
4554.10.008101,414,6266
4554.11.008111,414,6283
4554.12.008121,415,0303
4554.13.008131,415,3322
4554.14.008141,415,8345
4554.15.008151,416,6381
4554.16.008161,416,6387
4554.18.008181,417,5433
4554.19.008191,417,5439
4554.20.008201,418,4481
4554.24.008241,420,4544
4554.25.008251,420,4561
4554.30.008301,521,8667
4554.37.008371,523,5796

Solicite o seu orçamento​
